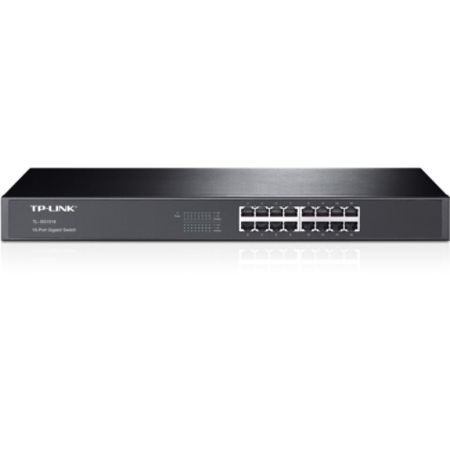

TP-LINK 16-Port 10/100/1000Mbps Gigabit Ethernet Switch Item # 140194

 |
TP-LINK 16-Port 10/100/1000Mbps Gigabit Ethernet Switch
$ 86 .49 / each $86.49
In Stock
Free delivery
Estimated delivery 7-10 business days

Greatly expands your networking capacity

  • High-speed Gigabit Ethernet switch features 16 ports with connection speeds up to 1000Mbps for fast transfers of large files.
  • Nonblocking architecture with 32Gbps switching capacity and 2048K bit buffer memory greatly improve network response times.

    Description

    Greatly expands your networking capacity

    • High-speed Gigabit Ethernet switch features 16 ports with connection speeds up to 1000Mbps for fast transfers of large files.
    • Nonblocking architecture with 32Gbps switching capacity and 2048K bit buffer memory greatly improve network response times.
    • Auto negotiation on each port senses the link speed of a network device and instantly adjusts to make the setup process easy.
    • Diagnostic LED indicators on the front panel display power, link/activity and speed information.
    • Power-saving features conserve up to 40% of the power.  Automatically powers down idle ports and budgets power output for different Ethernet cable lengths.
    • Plug-and-play design simplifies installation.  Auto MDI/MDIX eliminates the need for crossover cables.
    • Compact size makes it ideal to fit on your desk.  19" steel case is compatible with select rack mounts (not included).
    Back To Top

    Product Details

    Item # 140194
    OfficeMax # 23626621
    Manufacturer # KA4944
    Ethernet Technology Gigabit Ethernet
    plug and play yes
    power source Power Supply
    maximum data transfer rate 1,000 Mbps
    cable included yes
    Total Number of Network Ports 16
    height 1.7 in
    System Requirements Operating Systems: Microsoft Windows XP, Vista , Windows 7 or Windows 8; Mac OS X; NetWare; UNIX; Linux
    Number of Network (RJ-45) Ports 16
    Certifications & Standards CE; FCC
    PoE (RJ-45) Port No
    width 17.3 in
    Manageable No
    package contents TL-SG1016 16-Port Gigabit Switch; Power Adapter; User Guide
    depth 7.1 in
    Product Name TL-SG1016 16-Port Gigabit Switch
    manufacturer TP-LINK
    brand name TP-LINK
    Input Voltage 110 V AC; 220 V AC
    Port/Expansion Slot Details 16 x Gigabit Ethernet Network
    Media Type Supported Twisted Pair
    Layer Supported 2
    automatic speed sensing yes
    ports 16
    form factor Desktop; Rack-mountable
    color black
    warranty length 5-year limited
    model name TL-SG1016
    internal/external external
    Network Technology 10/100/1000Base-T
    Show More ▾
    Back To Top

      Customer Reviews

      Back To Top

      From the Manufacturer|Powered by Webcollage

      Thank You Is the information in this section helpful? Yes / No

      Overview

      • What This Product Does

        The 16-Port Gigabit Switch TL-SG1016 provides you with an easy way to transition to Gigabit Ethernet. Its standard 19-inch steel case makes it perfectly compatible with rack-mounts. All 16 ports support auto MDI/MDIX so there no need to worry about the cable type - simply plug and play! Plus, with innovative energy-efficient technology, the TL-SG1016 can save up to 40%* of the power consumption, making it an eco-friendly solution for your business network.
      See More:

      Key Features

      • Gigabit Switch

        Featuring 16 gigabit ports, the TL-SG1016 greatly expands your network capacity, enabling instant large files transferring.  Transfer graphics, CGI, CAD, or multimedia files across your network instantly.

      • Superior Performance

        The non-blocking architecture with a 32Gbps switching capacity and 2048 K bit buffer memory greatly improve network response times by forwarding and filtering packets at full wire speed for maximum throughput. An 8K MAC address table provides scalability for even the largest networks. It also supports 802.3x Flow Control for full-duplex mode and back pressure flow control for half-duplex mode which alleviate traffic congestion and ensure reliable data transmission.

      • Go Green With Your Ethernet

        The TL-SG1016 includes green Ethernet technology and power-saving features to help make your network compatible without compromising performance. The TL-SG1016 automatically powers down the ports that are idle and budgets power output for different Ethernet cable lengths. It helps you save power by up to 40%.

      • Ease of Use

        Auto features make the TL-SG1016 plug-and-play and hassle-free. Auto MDI/MDIX eliminates the need for crossover cables. Furthermore, Auto-negotiation on each port senses the link speed of a network device (10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance.

      • Diagnostic LED Indicators

        Diagnostic LEDs on the front panel display information for power, link/activity, and speed - enabling you to quickly detect and correct problems on the network.

      Features

      • Innovative energy-efficient technology saves power up to 40%
      • 100% Data filtering rate eliminates all error packets
      • Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode
      • Non-blocking switching architecture forwards and filters packets at full wire-speed for maximum throughput
      • 32Gbps Switching Capacity
      • Auto-MDI/MDIX eliminates the need for crossover cables
      • Supports MAC address auto-learning and auto-aging
      • Support the port N-Way Auto-Negotiation, Store and Forward.
      • Compact size design for desktops, Rackmountable
      • Plug and Play design simplifies installation

      5-Year Warranty

      • Need assistance setting up your TP-LINK device? Our team is here 24/7 to provide toll-free technical support. Whether you bought a TP-LINK product yesterday or years ago, we can help with product setup and configuration at no extra charge. Plus, our 5-year warranty grants you worry-free service for peace of mind.

      Comparison Chart

      5-Port Gigabit Desktop Switch 8-Port Gigabit Desktop Switch 5-Port 10/100/1000Mbps Desktop Switch 8-Port 10/100/1000Mbps Desktop Switch 16-Port Gigabit Switch 24-Port Gigabit Switch
      Model Number TL-SG1005D TL-SG1008D TL-SG105 TL-SG108 TL-SG1016 TL-SG1024
      Port Type Gigabit Gigabit Gigabit Gigabit Gigabit Gigabit
      Number of Ports 5 8 5 8 16 24
      Size Desktop (6.5-inch) Desktop (6.5-inch) Desktop (4-inch) Desktop (6.2-inch) 19-inch 19-inch
      Material Plastic Plastic Metal Metal Metal Metal
      AUTO MDI/MDIX
      Yes
      Yes
      Yes
      Yes
      Yes
      Yes
      IEEE 802.3X Flow Control
      Yes
      Yes
      Yes
      Yes
      Yes
      Yes
      Power Saving
      Yes
      Yes
      Yes
      Yes
      Yes
      Yes
      Plug and Play
      Yes
      Yes
      Yes
      Yes
      Yes
      Yes

      Package Contents

      • 16-Port Gigabit Desktop Switch
      • Power Adapter
      • User Guide
